Brouwer RoboMax JD

  • Compact, Maneuverable Automatic Stacking Roll Harvester
  • 16” / 23” / 24” Cutting Widths
  • Robotic Stacking System gently transfers 4 or 5 Rolls of turf at a time to rear-mounted pallets
  • Automatic Pallet Injector/ Optional Double Sided swings in for transport
  • Mounted on a John Deere 6110M Tractor
  • 24 x 24 Auto Quad Plus Transmission
  • Standard 4WD
  • Electronic Auto-Steer
  • 48” x 48” (1.2 m x 1.2 m) pallet 1.0 m x 1.2 m & 0.8 m x 1. 2 m pallet
  • Climate controlled deluxe cab
  • Operator friendly controls
  • Simple field adjustments
  • Scrap roll eject system (on the go)
  • Multiple stacking patterns
  • Squeeze function on upper layers
  • Excellent visibility
  • Adjustable hydraulic cutter head down pressure
  • Full operation lighting
  • Proven automatic flap control
  • Variable hydraulic cut-off
  • Optional front ground roller
  • Optional brush kit
  • Operation and diagnostic screen
  • Rear Gate

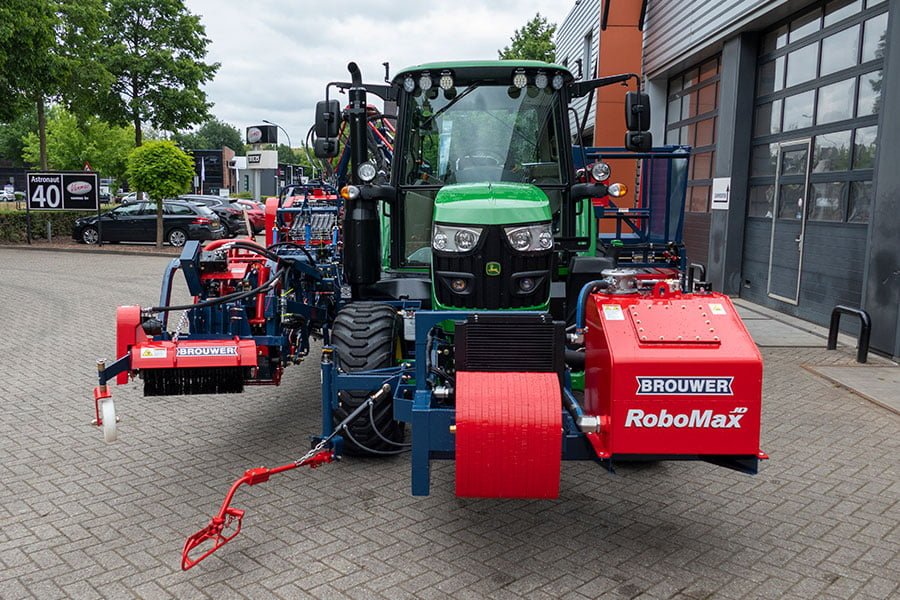

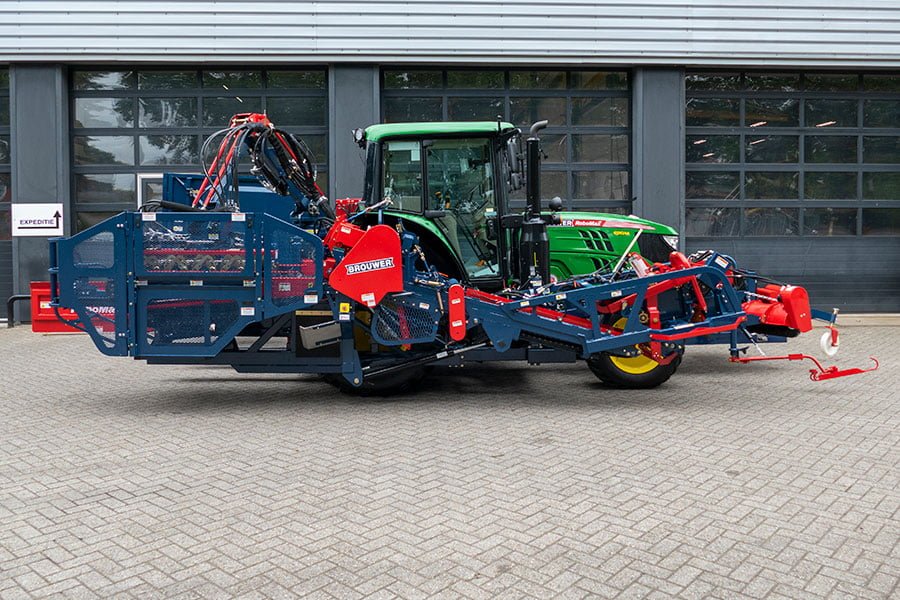

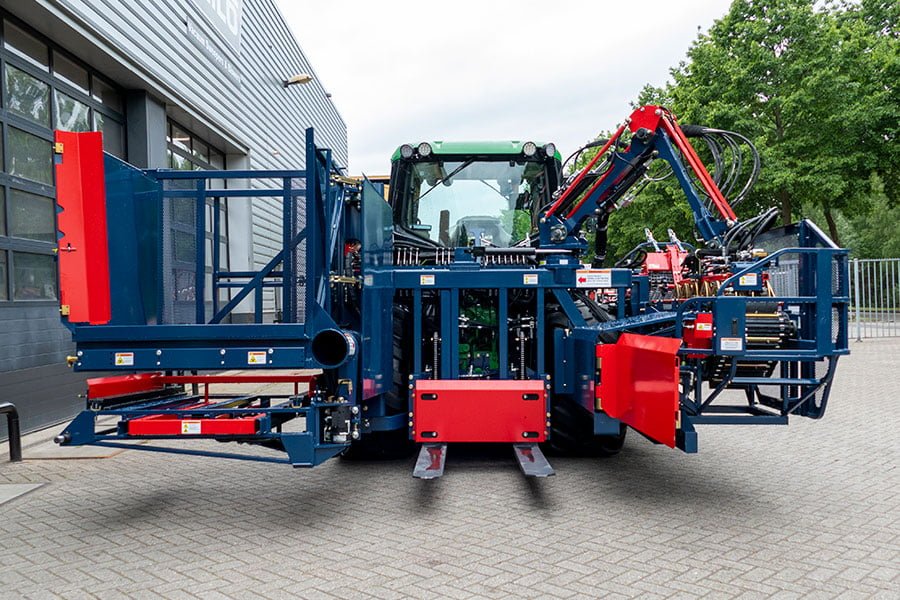

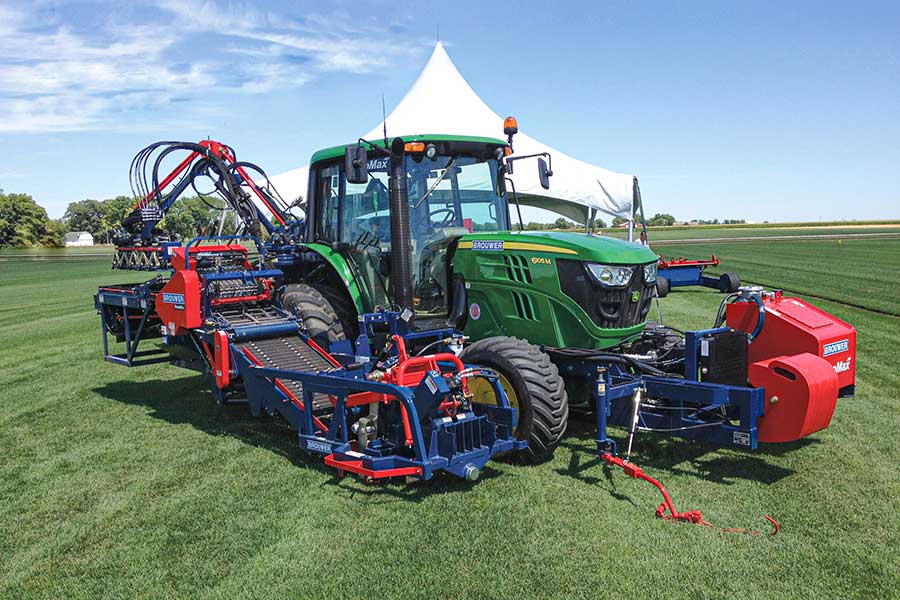

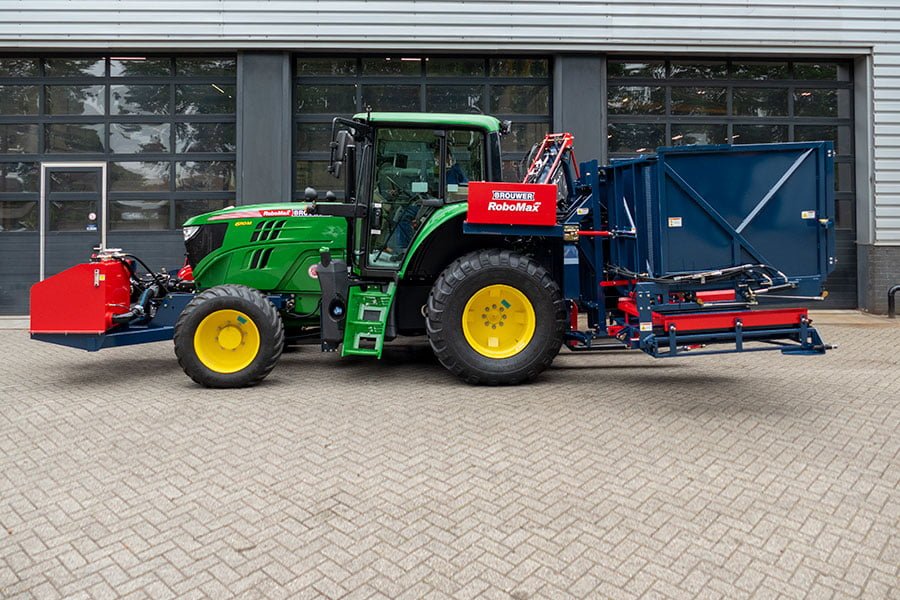

The RoboMax JD Sod Harvester from Brouwer proves our commitment to your business performance. This single-operator Sod Harvester is simple and state of the art. It is capable of producing pallet after pallet of (1.2 m x 1.2 m, 1.0 m x 1.2 m, 0.8 m x 1.2 m) 41/58/61 cm small rolls even in tender conditions. A simple robotic stacking system gently transfers 4 or 5 rolls of turf at a time to rear mounted pallets that are easily handled with a forklift. An optional double sided pallet injector is also available. Easy to operate and maintain, the RoboMax JD Sod Harvester from Brouwer is a cut above.

SKU brouwer-robomax-jd Category Tag
